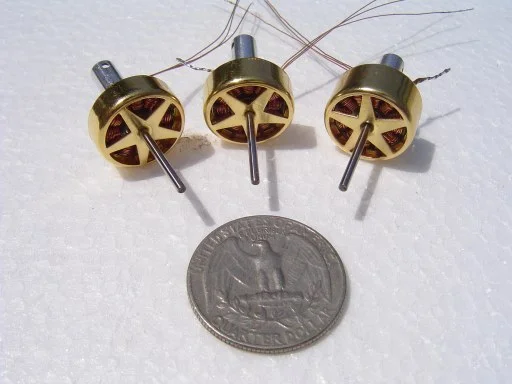

8 gm,Mighty Midget “GOLD” LINE motors

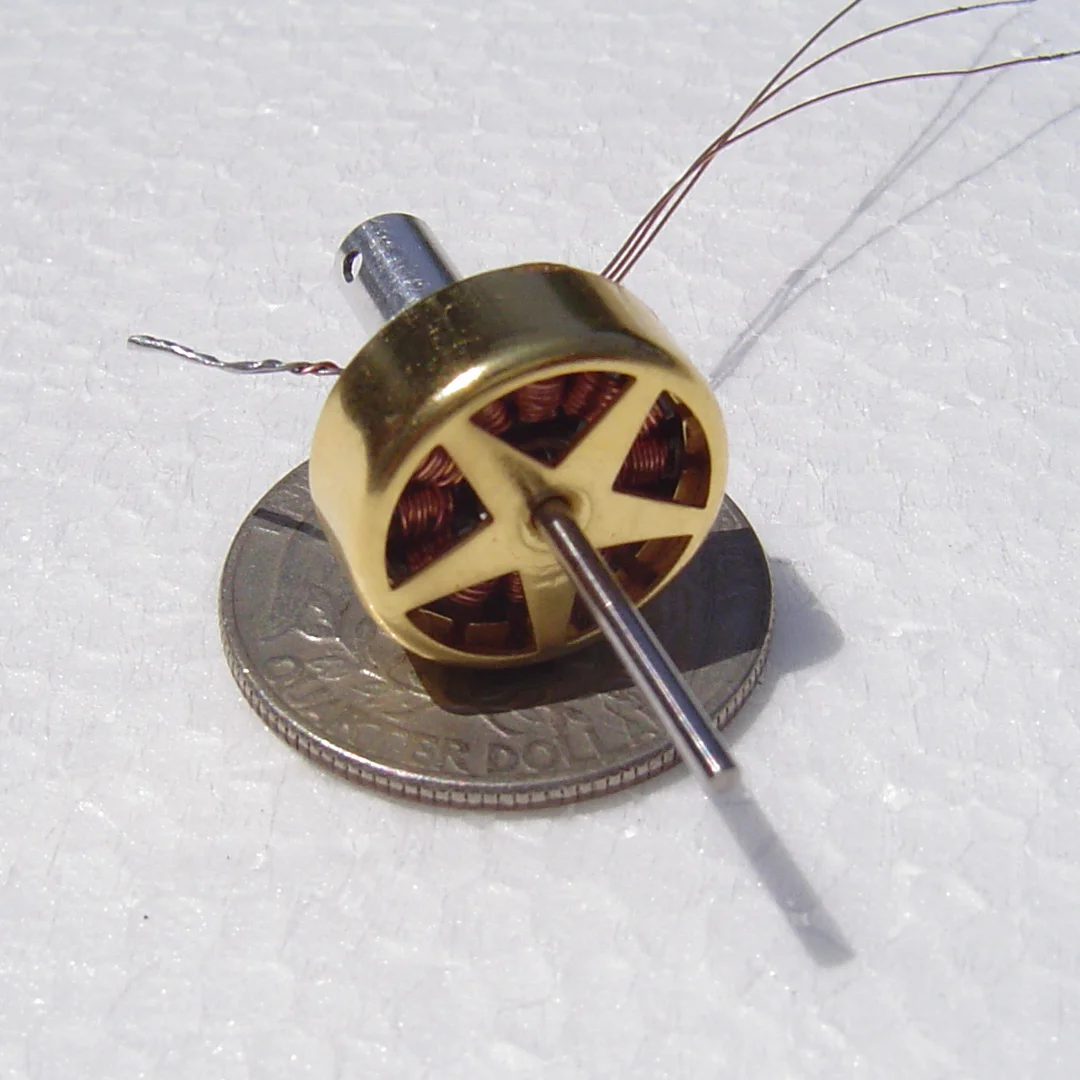

This 8gm motor is the largest motor we offer. They feature a 6mm stack. This is a power house and can put out amazing thrust. We offer 2 winds on these motors. One wind is optimized for 2 cell operation, and the other wind is more suited for 3 cell operation. These motors are perfect for 3D planes weighing between 60-100gms, and sports aerobatic planes up to around 150gms. Lipoly cells like the Kokam 340SHD’s, or Maxamp 380’s are a good match for the motor. A common feature of all the Gold line motors is that the bell and shaft assembly come out entirely when pulled. The magnetic field strength is enough to prevent the bell from coming out during normal puller mode use. Another advantage with these motors is that the prop can be pressed on the shaft easily by removing the bell/shaft assembly and then just slipping it back in.
Specifications:
Mighty Midget 13/6/11– This is the wind optimized for 3 cell operation. It can also be used on 2 cells depending on the application. The GWS 5*3, 6*3 and 7*3.5 props work well with this wind. For 3D planes weighing within 70gms, a 2S pack of cells in the 10gm range can be used. For heavier planes, a 3S pack is best.
Measurements at 7V :
PROP | AMPS | THRUST | RPM |
GWS 5*3 | 1.5 | 85g | – |
GWS 6*3 | 2.24 | 124g
| |
GWS 7*3.5 | 2.74 | 142g |
Measurements at 10V:
PROP | AMPS | THRUST | RPM |
GWS 5*3 | 2.8 | 156g | – |
GWS 6*3 | 3.5 | 210+g | – |
Mighty Midget 13/6/9– This wind has been optimized for 2 cell operation. Use this wind for the lightest total equipment weight, great for 3D planes weighing around 70gms.
Measurements at 7V :
PROP | AMPS | THRUST | RPM |
GWS 5*3 | 2.3 | 107g | – |
GWS 6*3 | 3.0 | 144g | – |
GWS 7*3.5 | 3.6 | 156g | – |
