1.5gm, Mighty Midget motor

Pictured here is probably the smallest commercially available Micro brushless outrunner motor. Weighing in at only 1.5gms, it features our 10mm stator and uses a 1mm shaft, and 1mm precision Ball bearings. An added benefit with these motors is that the rotor can be pulled out with the shaft, making prop mounting a snap. Comes in two winds, 36T, and 50T. The FR 50mah, and 130mah cells are a perfect match!

Specifications

Mighty Midget 10/1/36T:

PROP

AMPS

THRUST

RPM

GWS 2.5*1

0.550 ( 3.7V )

11g

Mighty Midget 10/1/50T :

PROP

AMPS

THRUST

RPM

Union U-80

0.580 ( 3.7V )

12g

Union U-80

1.0 ( 7.2V ) *

22g



* Requires airflow for 2S operation.

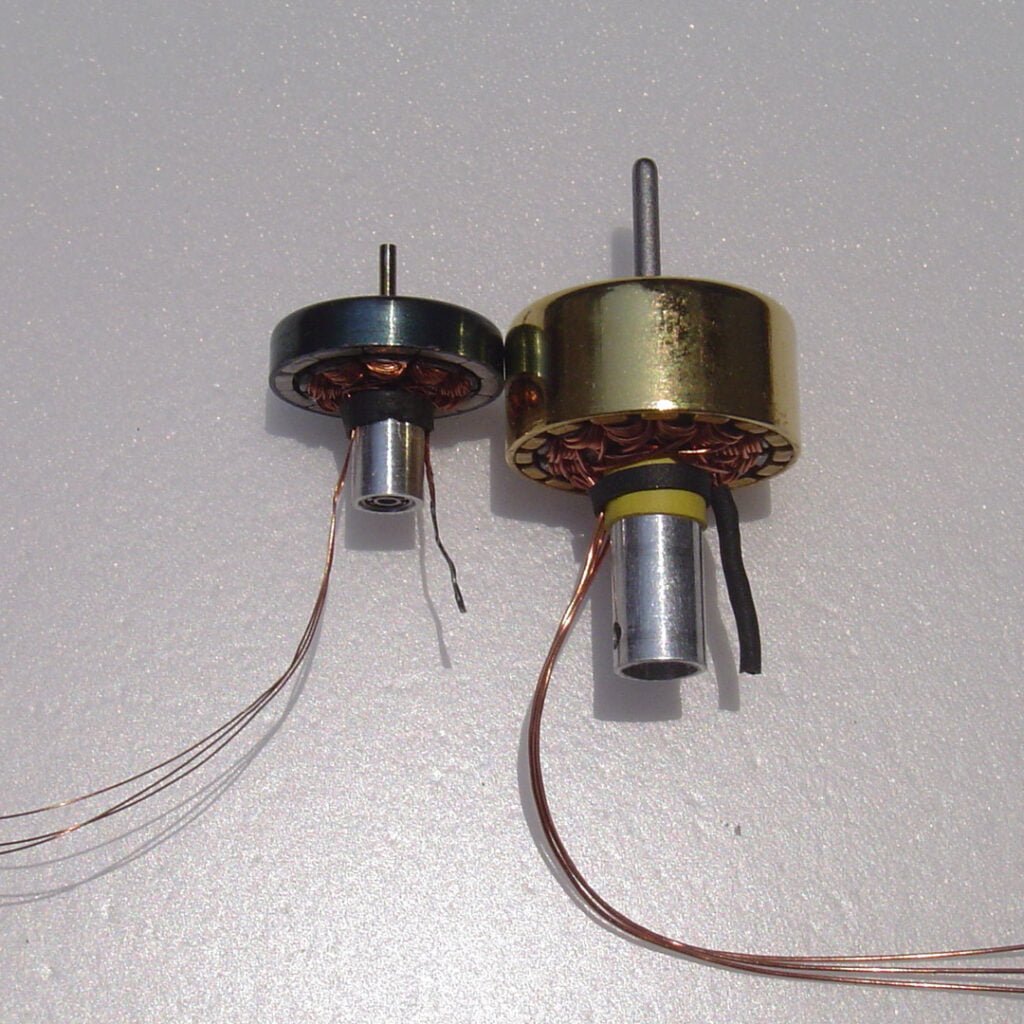

Seen here next to our 13mm GOLD LINE Double whopper motor
